Name: CE Certified Wood Sawdust Machine with 110KW Power and 4000-5000KG/H Capacity for Industrial Use
Brand: Henan Bedo Machinery Equipment Co.,LTD
SKU: BD-FS4030
Availability: InStock

Home > Products > Wood Sawdust Machine >

CE Certified Wood Sawdust Machine with 110KW Power and 4000-5000KG/H Capacity for Industrial Use

CE certified wood sawdust machine

wood sawdust machine with warranty

factory direct wood sawdust machine

Place of Origin:

China

Brand Name:

BEDO

Certification:

Model Number:

BD-FS4030

Request A Quote

Product Details

Name:

Wood Sawdust Machine

Capacity:

4000-5000KG/H

Weight:

4500KG

Power:

110KW

Feeding Motor:

Hydraulic Motor

Material:

Carbon Steel

Rotating Speed:

1400r/min

Blade Quantity:

480PCS

Blade Material:

Alloy Steel

Packing:

Nude Packing In Full Container

Highlight:

CE certified wood sawdust machine

wood sawdust machine with warranty

factory direct wood sawdust machine

Payment & Shipping Terms

Minimum Order Quantity

1Set

Price

Negotiable

Packaging Details

Plastic film packed in full container

Delivery Time

20-25 working days after down payment

Payment Terms

Western Union,L/C,T/T,MoneyGram

Supply Ability

50 Set/Sets per Month

RELATED PRODUCTS

+8618137673245

bedogroup01@bedomachinery.com

Contact Now

Product Description

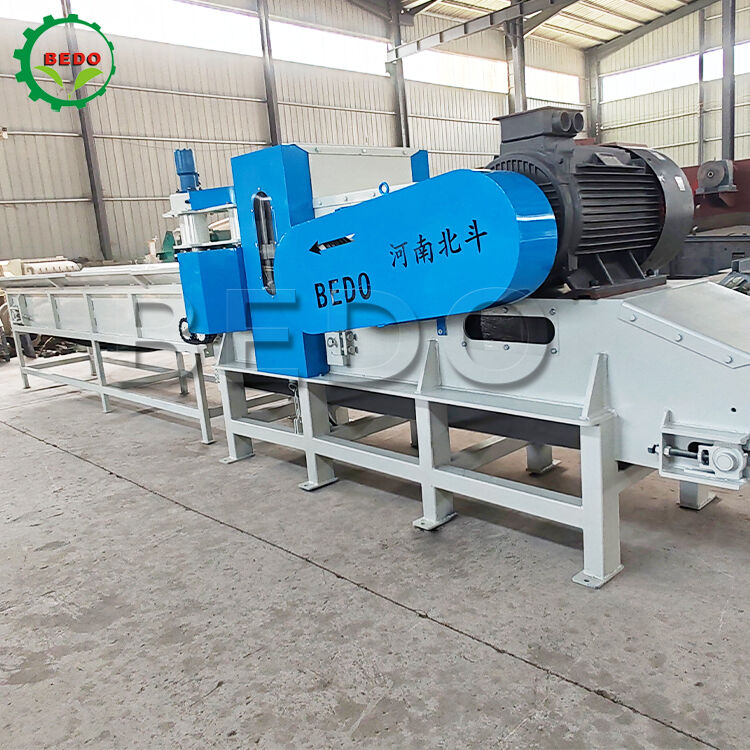

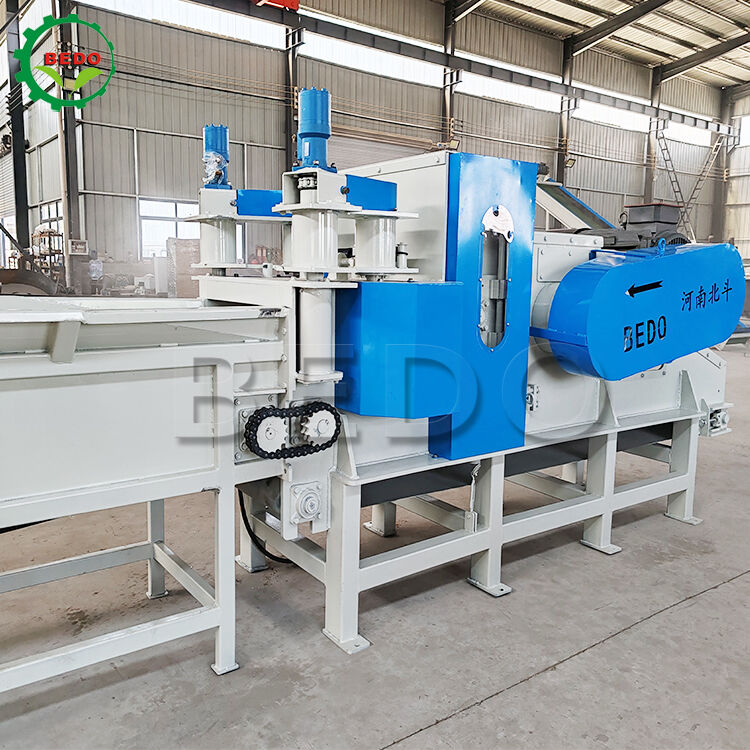

High-Efficiency Wood Sawdust Machine

This CE Certified Wood Sawdust Machine is an integrated industrial solution that processes raw logs directly into uniform sawdust or fine wood chips in a single continuous operation. Engineered for biomass fuel plants, wood recycling centers, and large-scale sawmills, this robust machine delivers exceptional productivity with minimal preprocessing requirements.

Machine Structure

The machine features a logically integrated system with these key components:

Heavy-Duty Feed Hopper: Reinforced inlet designed for safe whole log feeding
Primary Chipping/Shredding Chamber: Houses durable cutting rotor with replaceable knives for initial log breakdown
Secondary Fine-Grinding Chamber: High-speed hammer mill rotor with screen mesh cage for uniform sawdust production
Screen Mesh (Sieve): Determines final particle size with easy replacement options
Powerful Drive System: High-torque electric motor with heavy-duty transmission
Discharge System: Centrifugal fan transports sawdust to cyclone separator
Cyclone Separator & Collection Bag: Separates sawdust from air stream for efficient collection
Robust Frame & Casing: Welded steel construction for stability and safety
Electrical Control Cabinet: Complete protection and control systems

Key Features

Direct feed capability for whole logs up to 450×300mm
Two-stage integrated design combining chipping and grinding
Adjustable particle size with interchangeable screen meshes
Heavy-duty construction with wear-resistant components
Advanced dust control with integrated cyclone separator
Intelligent safety systems with overload protection
Low maintenance design with easy access to key components

Technical Specifications

Parameter	Value
Product Name	Wood Sawdust Making Machine
Weight	4500KG
Capacity	4-5T/H
Dimensions	8000×1600×1800mm
Blade Quantity	480 Pieces
Power	110KW
Feeding Size	450×300mm
Blade Material	Alloy Steel
Voltage	380V
Material	Carbon Steel

Applications

Biomass Fuel Production: Raw material for wood pellets, briquettes, and biomass boiler fuel
Animal Bedding Manufacturing: Uniform sawdust for poultry and livestock bedding
Board Industry: Raw material for particleboard, MDF, and OSB production
Composting & Mulch: Perfect mulch for landscaping and agricultural compost
Bio-energy & Pulp: Feedstock for biorefineries and paper pulp production
Wood Waste Recycling: Conversion of demolition timber and logging residues into valuable sawdust

Packaging & Shipping

The wood sawdust machine is securely packed in wooden boxes and shipped via railway or sea transport. Each package includes proper labeling with product details, model numbers, shipping dates, and destination information. Internal packaging with foam and paper ensures safe transportation.

Optional Accessories

Dust Collection Systems

Pulse jet dust collector
Cyclone separator
Airlock discharge valve

Automation Equipment

Automatic feeding conveyor
Screw conveyor for material transfer
Automatic packing machine

Special Configurations

Mobile trailer version
Water cooling system
Metal detector for feed protection
