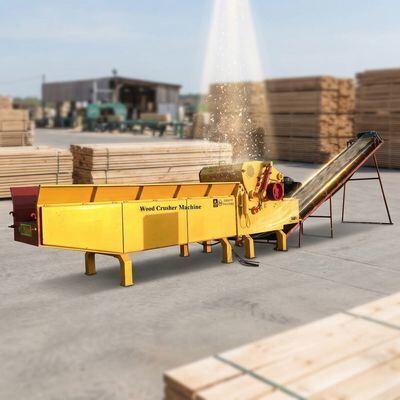

Wood Crusher Machine SH1300-600 Heavy Duty Industrial Wood Chipper Shredder Equipment

The SH1300-600 heavy duty wood crusher machine is engineered for continuous, high-volume reduction of difficult wood waste. At the heart of the unit sits a forged 850 mm blade roller that turns at 850 rpm and is driven by a single 160 kW motor, allowing it to swallow logs, branches, pallets, sleepers and root balls without repeated stalling. Unlike light garden chippers, this industrial wood chipper shredder is built for recycling yards where mixed material arrives contaminated with nails, wire and stone. A permanent magnetic separator lifts ferrous scrap from the feed stream before it can reach the cutting chamber, protecting the knives and keeping output consistent on demolition and pallet-recycling lines.

• Extra-wide feeding inlet: the SH1300-600 opens to 1300 x 600 mm, so branching tree sections and irregular offcuts that choke smaller machines pass through freely.
• Integrated magnetic separation: a permanent magnetic unit pulls nails, screws and iron fragments out of pallet and construction wood, guarding the blade system and reducing downtime.
• YG8 hammer blade set: 20 tungsten-carbide-tipped hammers work together with 2 groups of 4 reversible knife blades to deliver an even, splinter-free chip size.
• Heavy forged rotor: the 850 mm roller is dynamically balanced and heat treated to absorb shock loading from stumps and rail sleepers without cracking.
• Adjustable output size: the discharge grate can be exchanged to produce chips from 20 to 40 mm, matching the requirements of different downstream processes.
• Long blade service life: hammer blades sustain a working life of 4000 to 5000 tonnes between replacement, which lowers the cost per tonne of processed wood.
• Flexible drive and mobility: an electric motor version or a diesel engine with generator can be supplied, and optional wheels plus a hydraulic foldable outlet conveyor allow on-site operation.

The machine is widely used in sawmills and timber processing plants, biomass power stations, wood pellet and briquette lines, pallet and packaging recycling yards, particleboard and MDF factories, and landscaping companies that need to dispose of green waste on site. Because it accepts nails, stones and painted timber, it also suits construction and demolition waste operations, waste-to-energy projects and compost producers who need a reliable first-stage size reduction step. The adjustable chip size makes the output suitable either as boiler fuel, as raw material for further drying and grinding, or as garden mulch.

Each unit is assembled and test-run before shipment to confirm rotor balance, blade alignment and electrical safety. The machine is protected with rust-preventive oil, wrapped in stretch film and fixed inside a steel frame or standard export wooden case. We provide a twelve month warranty on the main structure, lifetime technical support, and a complete spare-parts pack including spare hammer blades and knife blades. Spare parts are also available individually for customers who run multi-shift operations. Please share your raw material type, required capacity and output size so that we can recommend the most suitable model and confirm a formal quotation.
