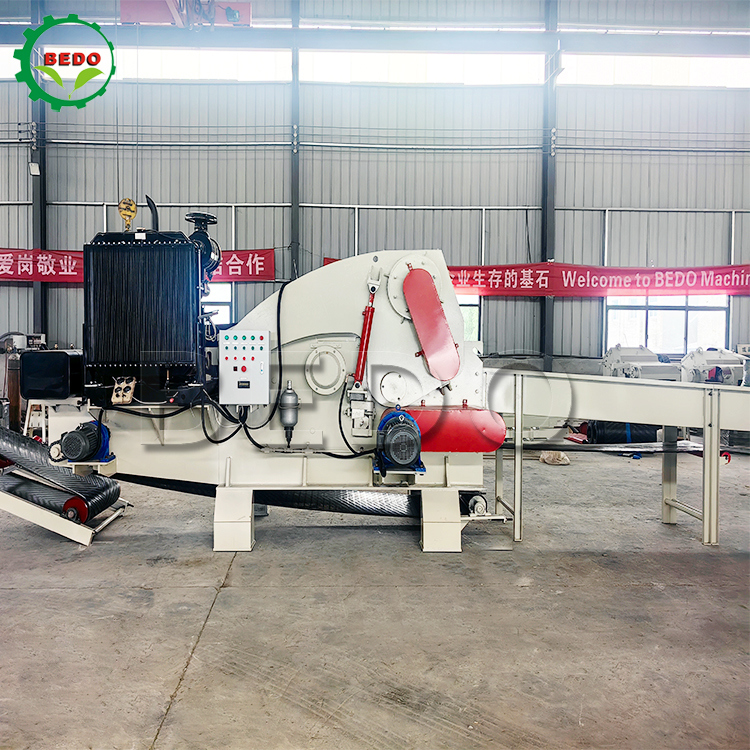

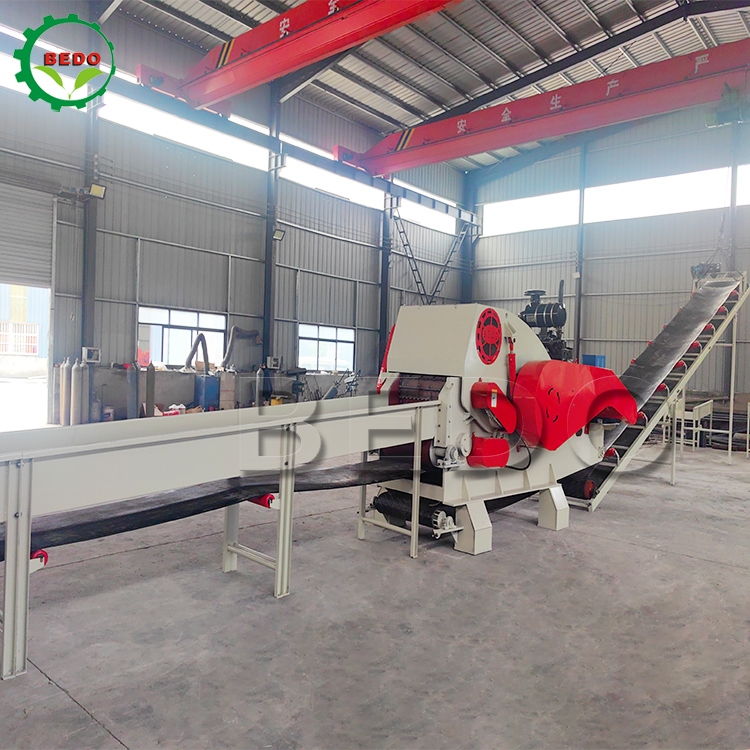

Name: 235HP Hydraulic Motor Feed Conveyor Wood Chipper Machine with CE Certification for Industrial Wood Processing
Brand: Henan Bedo Machinery Equipment Co.,LTD
SKU: BD-BX218H
Availability: InStock

Home > Products > Wood Chipper Machine >

235HP Hydraulic Motor Feed Conveyor Wood Chipper Machine with CE Certification for Industrial Wood Processing

hydraulic motor wood chipper machine

diesel engine wood chipper

CE certified wood chipper

Place of Origin:

China

Brand Name:

BEDO

Certification:

Model Number:

BD-BX218H

Request A Quote

Product Details

Number Of Blade:

2pcs

Power Source:

Diesel Engine

Inlet Size:

700*400mm

Main Power:

235HP

Warranty:

1 Year

Color:

As Customer's Request

Certificate:

Name:

Wood Chipper Machine

Highlight:

hydraulic motor wood chipper machine

diesel engine wood chipper

CE certified wood chipper

Payment & Shipping Terms

Minimum Order Quantity

1SET

Price

Negotiable

Packaging Details

Internal plastic film wrapping, external plywood packing

Delivery Time

20 working days

Payment Terms

50% TT payment in advance,the balance payment before shipment

Supply Ability

50 sets/month

RELATED PRODUCTS

+8618137673245

bedogroup01@bedomachinery.com

Contact Now

Product Description

Industrial Drum Wood Chipper Machine

High-performance wood processing equipment designed for converting logs, branches, timber waste, and whole trees into uniform wood chips. Features a robust rotating drum with multiple cutting knives for exceptional productivity and consistent chip quality.

Key Features

High-Efficiency Design

Processing Capacity: 10-100 tons per hour
Feed Size Capacity: Up to 600mm diameter logs
Output Chip Size: 15-45mm (adjustable)
Power Requirements: 75-450 KW electric or diesel options

Performance Advantages

Continuous feeding capability with throughput up to 100 tons/hour
Consistent chip geometry with length-to-thickness ratio < 100:1
Optimized cutting geometry reduces power consumption by 15-20%
Quick-change knife system reduces downtime
Handles various wood forms including whole trees, logs, and slabs

Technical Specifications

Parameter	Specification
Warranty	1 Year
Chip Size	25-35mm
Color	As Customer's Request
Feed Conveyor Power	Hydraulic Motor
Feed Conveyor Length	6M
Inlet Size	700*400mm
Number of Blades	2pcs
Capacity	12-15t/h
Main Power	235HP

Industry Applications

Pulp & Paper Industry

Production of uniform wood chips for chemical and mechanical pulping, and pre-processing equipment for paper manufacturing plants.

Biomass Energy Sector

Preparation of feedstock for biomass power plants, chip production for wood pellet and briquette manufacturing, and biofuel raw material processing.

Wood-Based Panel Production

Chip supply for OSB manufacturing, raw material preparation for particleboard plants, and MDF chip production.

Landscaping & Mulching

Production of decorative landscape mulch, wood chips for playground surfaces and pathways, and erosion control material manufacturing.

Recycling Operations

Processing of demolition wood and construction waste, pallet recycling and wood waste management, and urban tree maintenance.

Machine Structure & Components

Feeding System

Hydraulic feed rollers (2-4 heavy-duty rollers with adjustable pressure), variable speed chain or belt conveyor, safety devices including anti-kickback fingers and emergency stop system, and feed opening options from 400*600mm to 600*800mm.

Cutting Mechanism

Solid steel drum with precision-balanced design, 4-12 replaceable knives (hardened steel or tungsten carbide), adjustable counter knife for optimal cutting clearance, and quick-change hydraulic clamping system.

Power & Drive System

High-torque electric motor or diesel engine, heavy-duty gear reducer or hydraulic drive, independent hydraulic power unit, and PLC-based control with touch screen interface.

Discharge & Screening

Angled chute with wear-resistant lining, rotary or vibrating screen for size classification, automatic recycling of oversized chips, and optional belt conveyor for chip transport.

Frame & Enclosure

Welded steel construction with vibration dampening, optional noise reduction housing (≤85 dB), full perimeter guarding with interlocked access doors, and stationary, semi-mobile, or trailer-mounted versions.

Control System

Automated operation with feed rate optimization, real-time monitoring of critical parameters, overload protection and automatic shutdown, and optional IoT connectivity for performance tracking.

Support & Services

Comprehensive technical support and maintenance services available. Contact our engineering team for installation guidance, operational training, and ongoing service requirements.
