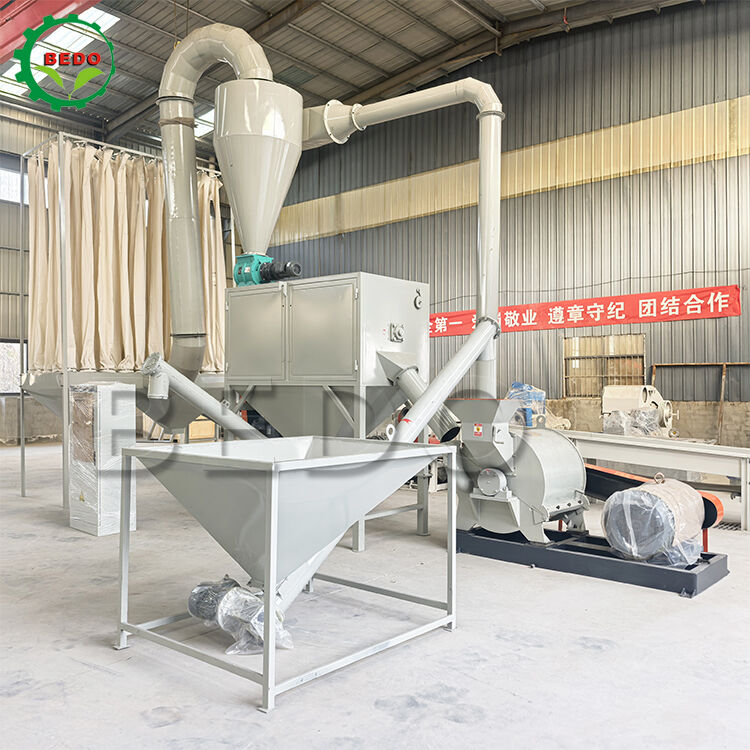

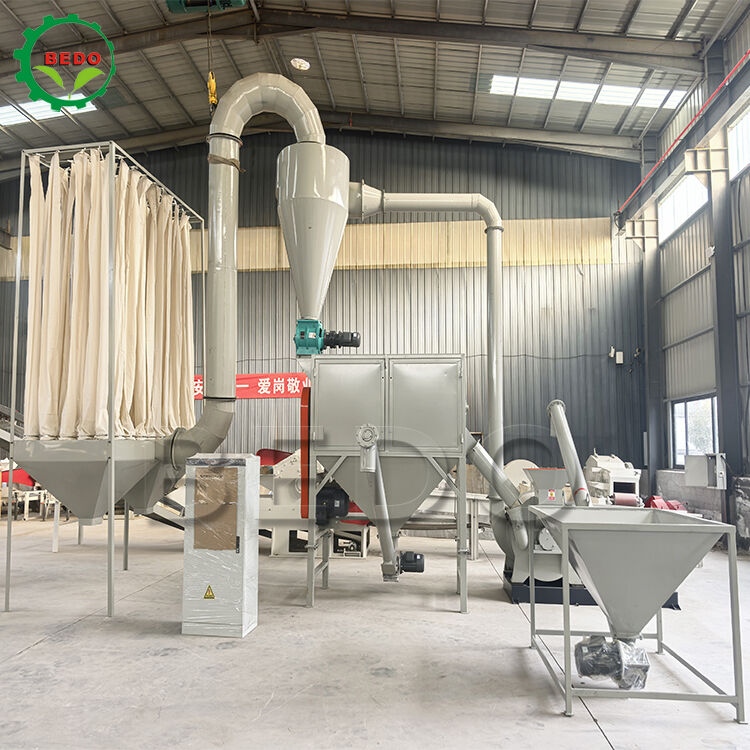

Multifunctional Wood Powder Machine for Incense Making and Spice Grinding
A Wood Powder Machine, also known as a wood grinder, wood pulverizer, or wood flour mill, is an industrial-grade mechanical device designed to crush, grind, and pulverize various forms of wood waste into fine, uniform powder. This machinery plays a pivotal role in sustainable manufacturing by transforming low-value wood byproducts into high-value raw materials for diverse industries.
Core Function and Working Principle
The primary function is size reduction. The machine takes input materials like wood logs, chips, branches, sawdust, and wood pallets, and processes them through mechanisms like high-speed impact, shear, or grinding. The output is a finely graded wood powder with controllable particle size, typically ranging from coarse sawdust (1-5mm) to superfine flour (80-300 mesh or finer).
Common Working Principles
- Hammer Mill: Uses rotating hammers to repeatedly strike and shatter wood against a screen until particles are small enough to pass through.
- Disc Grinder (Pulverizer): Employs two counter-rotating discs with teeth to shear and grind wood into powder.
- Knife Crusher: Utilizes sharp blades to chip and cut wood into smaller pieces before fine grinding.
Technical Specifications
| Model |
BD-MF1000 |
| Main Power |
90kw |
| Feeding Power |
2.2kw |
| Screening Machine Power |
7.5kw |
| Moisture |
≤15% |
| Max. Feeding Size |
8mm |
| Discharging Power |
2.2kw |
| Airlock Power |
1.5kw |
| Final Powder Size |
50-200mesh |
| Package |
Nude packing in full container |
Industry Applications
- Wood-Plastic Composites (WPC): As a filler to manufacture decking, fencing, and furniture.
- Incense & Fragrance Industry: As the base material for incense sticks, cones, and religious products.
- Animal Husbandry: As absorbent bedding for poultry, horses, and pets.
- Board Manufacturing: For making particleboard, MDF, and bio-based panels.
- Chemical Industry: As a raw material for producing lignin, activated carbon, and biofuels.
- Agriculture & Gardening: Used as mulch, organic fertilizer carrier, or mushroom cultivation medium.
Key Features and Advantages
- High Efficiency & Automation: Modern machines feature automatic feeding systems, continuous operation, and high throughput, significantly boosting productivity.
- Adjustable Fineness: Equipped with replaceable screens or adjustable grinding chambers to produce powder of specific mesh sizes for different applications.
- Durability: Built with robust materials (e.g., high-carbon steel blades, sturdy welded frames) to handle hardwoods, softwoods, and other tough biomass.
- Integrated Dust Control: Often comes with or is compatible with cyclones and bag filter dust collectors, ensuring a clean workshop and operator safety.
- Versatility: Can process not only wood but also other dry agricultural and herbal materials, such as straw, spices, and leaves.
- Energy-Saving Designs: Optimized motor and drive systems reduce power consumption per unit of output.
Technical Support and Services
Our Product Technical Support team is dedicated to providing assistance with any technical inquiries, troubleshooting, and maintenance tips to ensure optimal performance of your machine. We offer a range of support options including installation guidance, training programs, and on-site maintenance services to help you get the most out of your Wood Powder Machine throughout its entire lifecycle.
Packaging and Shipping
Product Packaging: The wood powder machine is securely packed in sturdy cardboard boxes with protective wrapping for all components to prevent damage during transit.
Shipping Information: Shipped via reputable ocean carriage service with tracking number provided for monitoring shipment status and estimated delivery date.
Choosing the Right Machine
When selecting a wood powder machine, consider these key factors:
- Raw Material: Type, size, and moisture content of your input wood.
- Required Output: Desired powder fineness (mesh size) and hourly capacity.
- Power Source: Availability of electricity (motor-driven) or diesel engine for remote areas.
- Space & Budget: Factory layout and investment cost.
The Wood Powder Machine is an essential link in the circular economy, turning waste into wealth. By investing in the right equipment, businesses can achieve cost savings, create new revenue streams, and contribute to environmental sustainability. For specific models, technical specifications, and customized solutions, please consult with us freely.
