RoHS Approved Professional Air Flow Flash Dryer for Drying Sawdust
Introduction:

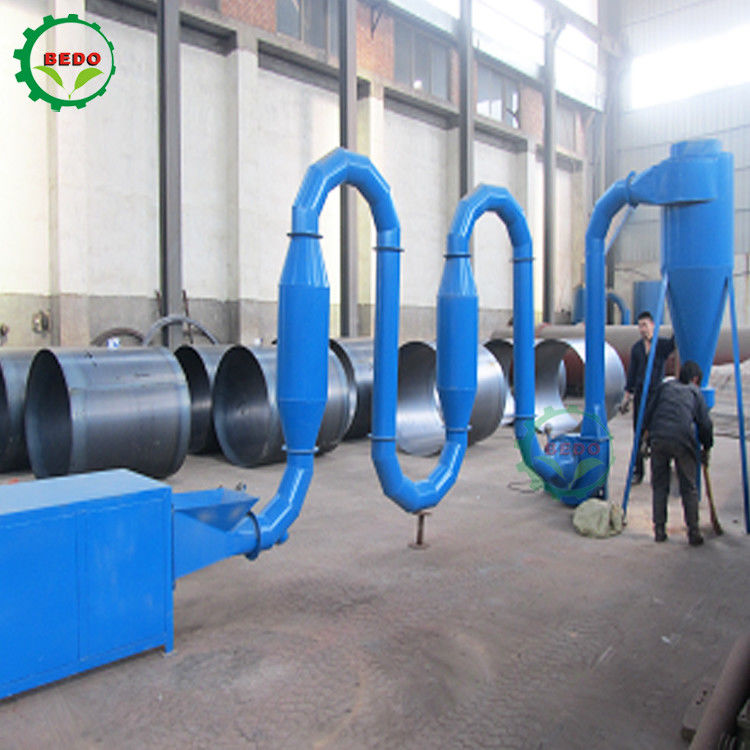

This air flow flash dryer is suitable for drying materials of moisture 30~60%. The dryer is equipped with two fuel boilers, inlet, steel pipe, exhaust blower (fan), air lock and cyclone. Wet materials are put into the hopper. The fuel boiler generates hot air which mixes with wet materials and then is sucked into the pipes by the exhaust blower (fan) quickly. And then hot air is flowing and going though the curving pipes and buffer (drying chamber) of dryer, thus wet materials is finished to dry, and the dried materials are discharged from the outlet with air lock. This wood dryer reduces the moisture to 8~12% with the advantages of low cost consumption and high efficiency.
Features of the air flow flash dryer:
1. Raw materials should be sawdust, suitable for drying the moisture from 20-50% to 8-12% ;
2. Diameter of raw materials: >3mm & < 5mm;
3. Temperature of Hot Air: 180-250 ;
4. Working principle: The stoves (boilers) generate hot air, then through the fan to dry the materials;
5. This wood sawdust air flow dryer reduces the moisture to 8-12% with the advantages of lower cost consumption and high efficiency;
6. The wood sawdust air flow dryer is equipped with one fuel boiler, inlet, steel pipe, exhaust blower (fan).
Specifications:
| Model | Power(kw) | Capacity(kg/h) | Weight(kg) | Size(m) | Moisture content |
| BD-QHJ4 | 4 | 300-400 | 1000 | 1.52*1.22*0.98+2.32*1.42*1.43 | 20-40% to 8-12% |
| BD-QHJ6 | 5.5 | 400-500 | 1500 | 1.45*1.22*0.98+2.45*1.90*1.15 | 20-40% to 8-12% |
FAQ:
Q1. What's the heating way of the air flow type sawdust dryer?
A1: This dryer has several heating ways, such as electricity, coal, biomass pellets, waste wood, gas, etc.
Q2. What kind of raw materials can this dryer dry?
A2: It is suitable for a wide range of materials, such as sawdust, soybean residue, grains, sludge, chicken manure, wine lees, organic fertilizer, mineral powder, charcoal powder, sand, etc.
Q3. Can i get some discount if i buy this machine from your company?
A3: Yes. We will give you the most favourable price; if buy more than two sets, the big discount will be given.
Q4. What is your payment term?
A4: 50% TT payment in advance, balance payment should be paid before shipment.
Q5. How long is your delivery time?
A5: Within 10 working days after getting the down payment.
Q6. Do you provide oversea service?
A6: If in need, we can dispatch our technician to do the installation and train your workers, but all the fees are on your side.
Q7. What is the warranty?
A7: The main machine warranty is 15 months.
Our products are sold all over the world, you can rest assured.
