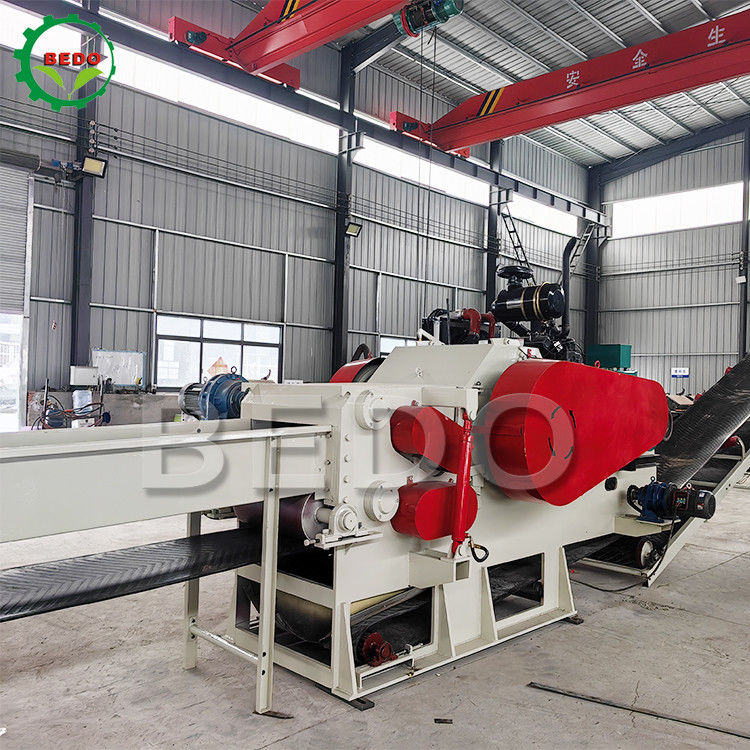

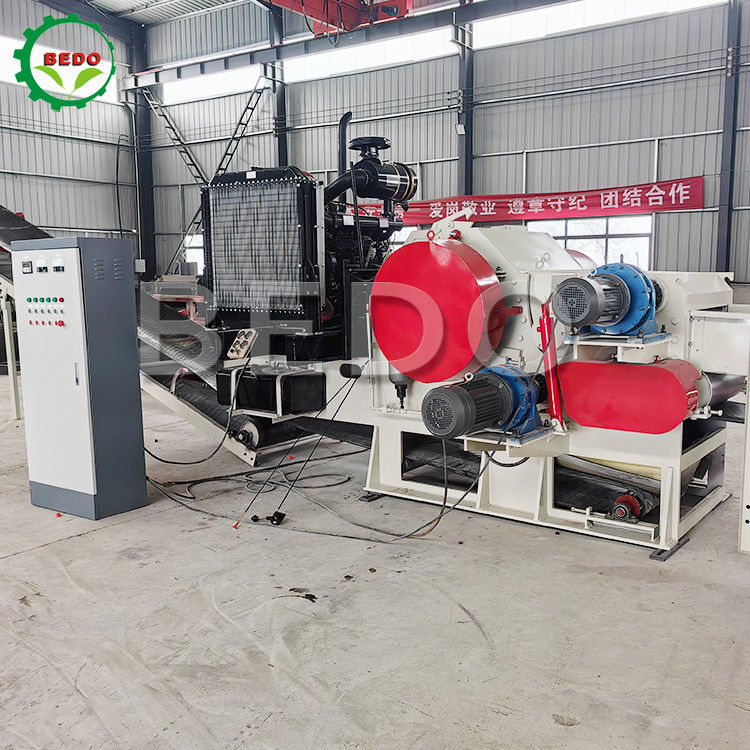

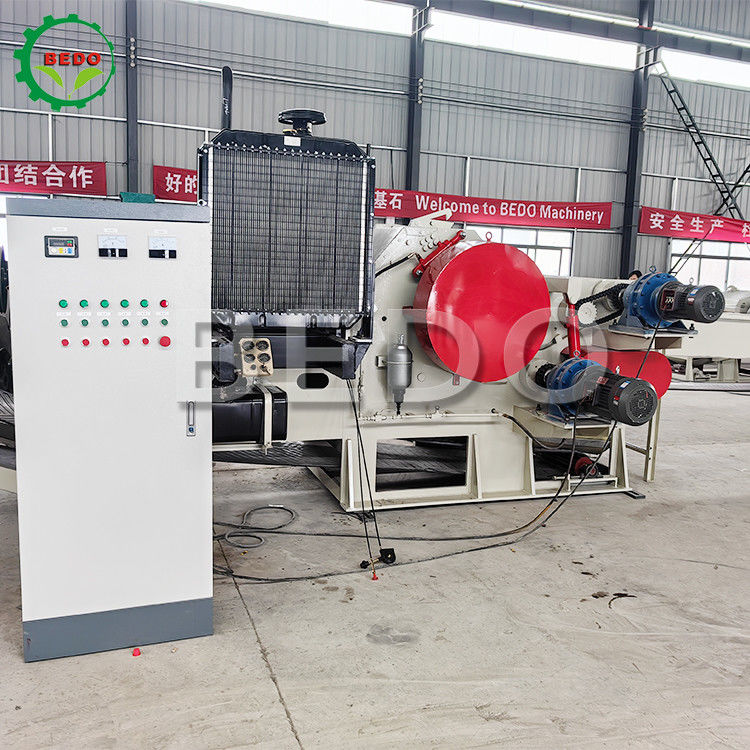

Heavy Duty Waste Tree Branch Drum Wood Chipper Machine 110KW
Product Description
Introduction:
Heavy duty drum wood chipper /Wood chipper /Wood Chips making machine is a machine which is used to a machine used for reducing wood (generally tree limbs or trunks) into smaller woodchips.
For large diameter wood log or waste wood pallets or waste building templates, usually need heavy duty drum wood chipper for making small size wood chips.
Usually the finished wood chips size is 3-5cm.
Features:
1. Drum wood chipper is suitable for chipping particle board, density beaverboard, wood fiber board, widely used in paper-making factory, power plant and industrol boiler…etc.
2. This wood chipper machine can chip the raw material into small chips, these chips are raw material of chipboard, density beaverboard and wood fiber board, also could be burning material as sort of fuel.
3. The frame is made of high strength steel plate welding and become, is the support of the drum chipper basis.
4. The fly knives fixed on the roller, by special bolts which are special designed for fly knives, according to the different thickness of raw material, the top feed mechanism could be adjusted automaticly, the small chips drop through screen, the large size material will stay inside machine and get chipped again.
5. The hydraulic system is designed to be refill by manual operation, so that the cover shell of the wood chipper could be opened, easier for user to replace the parts and knives, also convenient for adjusting the space between fly knives and fixed knives.
Application Materials:
The raw materials of drum wood chipper can be pulpwood, waste wood, and residual wood from agriculture, landscaping, logging, and sawmills. Woodchips can also be produced from remaining forestry materials including tree crowns, branches, unsaleable materials or undersized trees.
Usually the finished products of drum wood chipper, wood chips is 3-5cm.
Specifications:
| Model | BD-BX215 | BD-BX216 | BD-BX218 | BD-BX2113 |
| Inlet size (H*W) (mm) | 170*430 | 240*540 | 310*700 | 400*700 |
| Blade number (pcs) | 2 | 2 | 2 | 3 |
| Knife roller speed (turn/min) | 590 | 590 | 590 | 420 |
| Max.diameter (mm) | 170 | 200 | 300 | 380 |
| Woodchips size (mm) | 25-35 | 30-35 | 25-35 | 25-35 |
| Capacity (t/h) | 3-5 | 5-8 | 12-15 | 25-30 |
| Main motor power (kw) | 37 | 55 | 110 | 220 |
| Feed roller motor power (kw) | 3+2.2 | 3+4 | 3+4 | 7.5+7.5 |
| Oil pump motor power (kw) | 1.1*1 | 1.1*1 | 1.1*1 | 3*1 |
| Weight (kg) | 3500 | 4500 | 7500 | 18000 |
| Dimensions(L*W*H)(mm) | 2300×1240×1420 | 2750×1900×1650 | 3250×2150×1900 | 3670*2517*2050 |
| Conveyor motor power(kw) | 3 | 3 | 4 | 5.5 |
FAQ:
Q1: How long is your machines' warranty?
A1: We provide one-year warranty and life-time after service.
Q2: Can your equipment run 24 hours a day?
A2: Our equipment is strong and durable for operating 24 hours a day.
Q3: Can you provide instruction of installation?
A3: Yes,we can send our engineers to guide installation or provide online installation instruction.
Q4: Can you ensure the machines operate normally?
A4: Except installation engineers, we also have production engineers to guide good operation.
Q5: How long will it take to produce the equipment?
A5: Expected to take 10-15 days.
Fixed Blades for Drum Wood Chipper
Material: 65# manganese steel
Blade thickness 20mm, thin 1mm per grinding.
Lifetime: 4-6 months
Rotary Blades
Material: 45# manganese steel
Lifetime: around 400-600hrs
Screen Mesh
Lifetime: 4-6 months
Size of Hole: 3-5cm
Material: Carbon Steel
