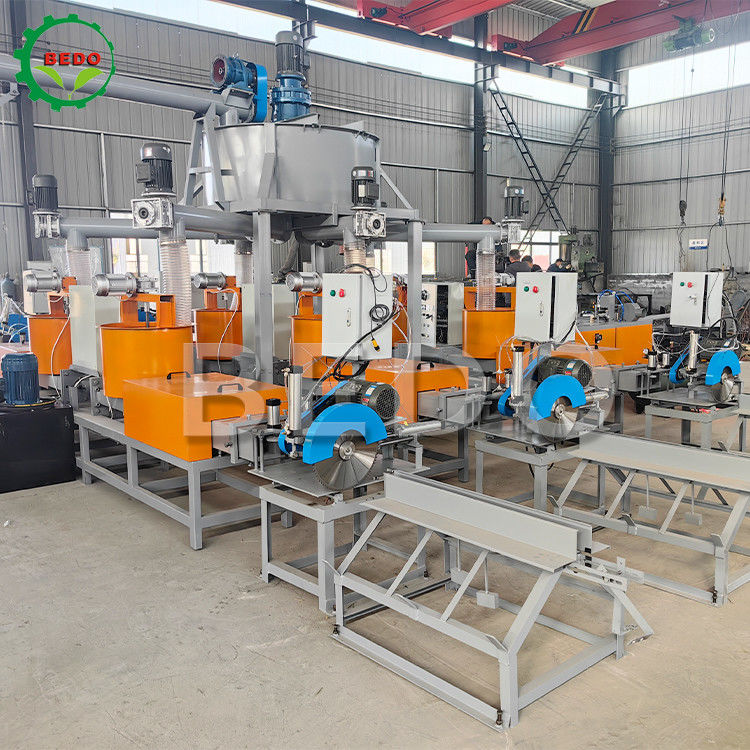

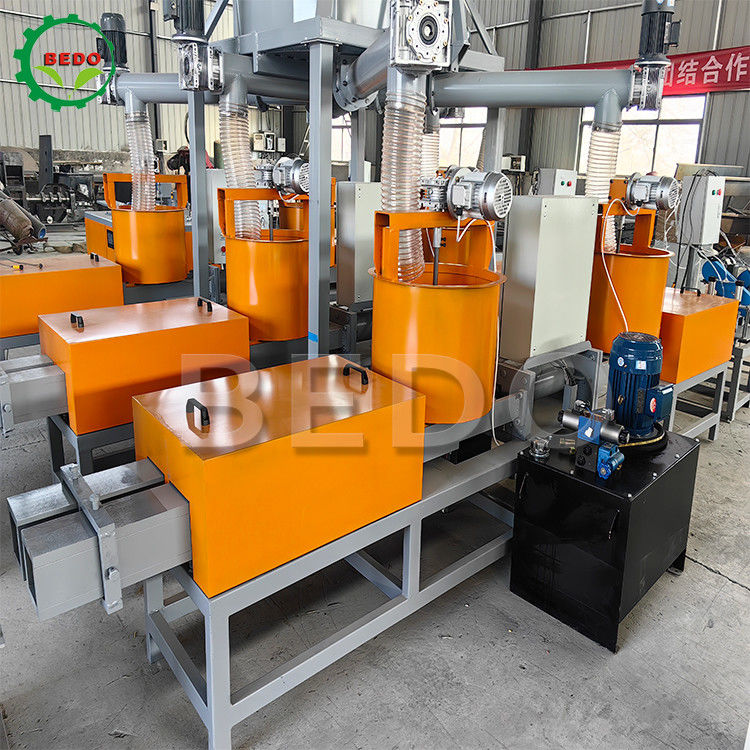

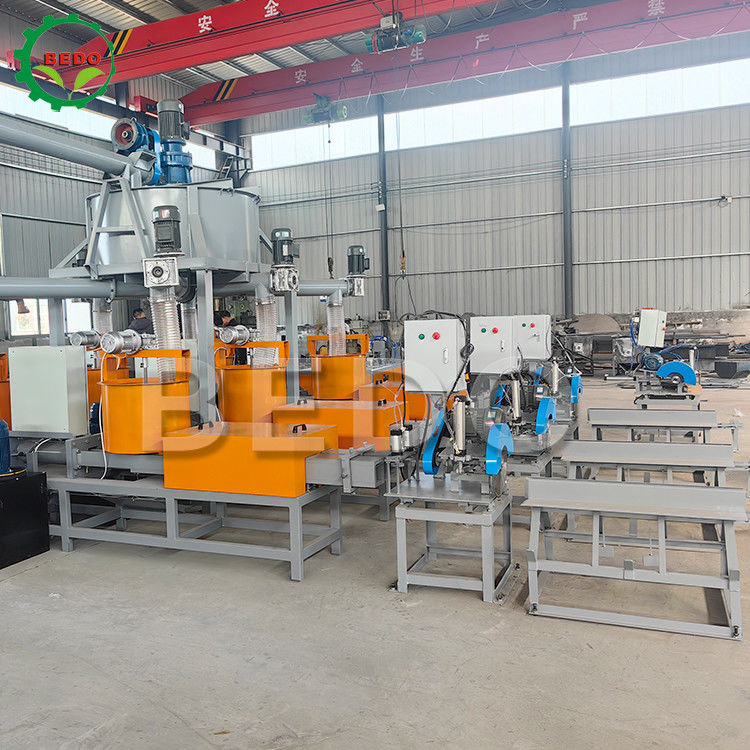

380V Wood Sawdust Pallet Block Compressed Making Machine
This industrial machine is designed to produce pallet blocks, the core components of block pallets. It efficiently recycles wood waste materials, transforming them into high-quality pallet blocks while contributing to environmental protection. The finished blocks achieve E1 grade certification and can be manufactured as solid or hollow configurations.
Key Features
- Recycles various wood waste materials including leftovers, building templates, and other wood residues to reduce raw material costs
- Single machine capable of producing two different block sizes
- Automated production system with automatic metering, feeding, mixing, discharging, material shortage warning, and cutting functions
- Labor-saving operation enables efficient 24-hour production cycles
Technical Specifications
| Model |
BD75*75 |
BD80*80 |
BD100*100 |
| Block Dimensions (mm) |
75-145 |
75-100 |
- |
| Power (kW) |
27.2 |
36 |
48 |
| Density (kg/m³) |
550-600 |
| Production Efficiency (m³/24h) |
2-5 |
5-6 |
6-7 |
| Dimensions with Saw (mm) |
5000×500×1300 |
8000×700×1500 |
| Weight (kg) |
1500 |
2000 |
2100 |
Block size: 75-145 mm width, 75-145 mm length. Custom sizes available upon request.
Compatible Raw Materials
This machine processes various wood waste materials including sawdust, wood chips, shavings, logs, planks, branches, waste pallets, furniture slabs, slats, garden wood core, and waste veneer. It also accommodates non-wood materials such as cotton stalk, reed, bamboo, and other fibrous materials. Raw materials must be crushed to required specifications prior to pressing to ensure uniform fiber alignment and superior block quality.
Production Process
The complete production line consists of a wood crusher, wood sawdust dryer, glue mixer, and the compressed wood pallet block machine.
Finished Block Advantages
Smooth surface finish, high strength, minimal deformation, cost-effective production, and fumigation-free export compliance. Custom block sizes available.
Frequently Asked Questions
- What is the strength of these blocks?
Block strength correlates with density. Standard density is 600kg/m³, providing excellent strength. Higher density options available for increased strength requirements.
- Are the blocks waterproof?
Yes, our manufacturing technology ensures waterproof properties. Testing shows minimal swelling and maintained strength after 7 days of water immersion.
- Do blocks meet Epal quality standards?
Yes, our blocks exceed Epal quality standards.
- Can blocks be exported directly?
Yes, blocks undergo high-temperature and high-pressure processing, making them suitable for direct export without fumigation.
- Do you offer automated production technology?
Yes, we provide fully automated production solutions tailored to your requirements.
Technical Support & Services
Our company provides comprehensive technical support and service for the Wood Sawdust Pallet Block Compressed Making Machine. Our experienced engineering team offers installation, commissioning, and after-sales services. We provide prompt customer support, regular maintenance, and repair services to ensure optimal machine performance. Customized service plans include onsite visits, remote support, troubleshooting, and operator training programs.
